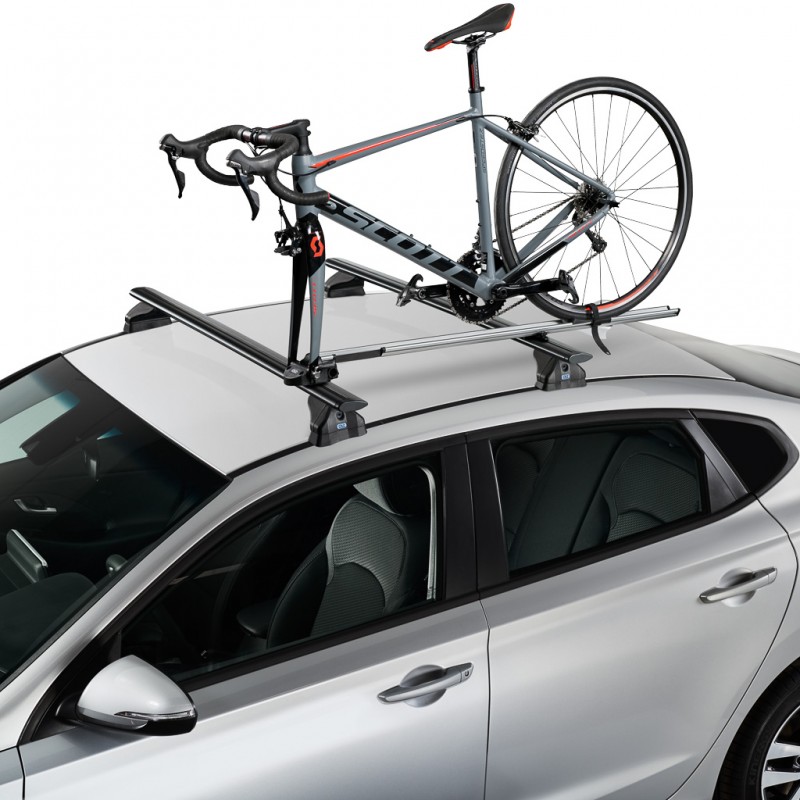

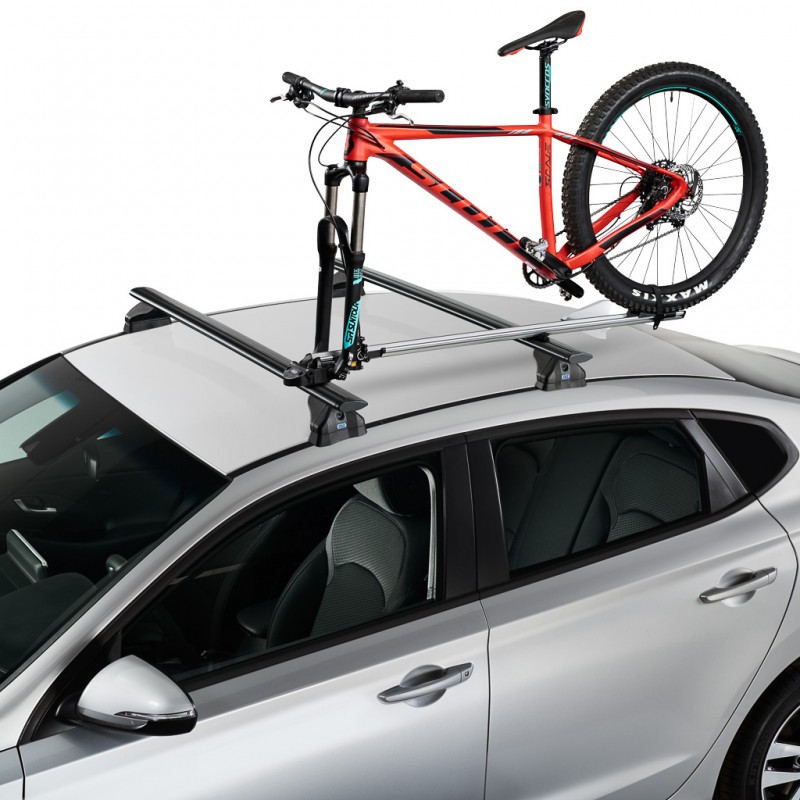

Roof rack mounted bike carrier to transport bikes using a fork mounted system (front wheel of the bike is removed).
Original price was: $180.00.$108.00Current price is: $108.00.

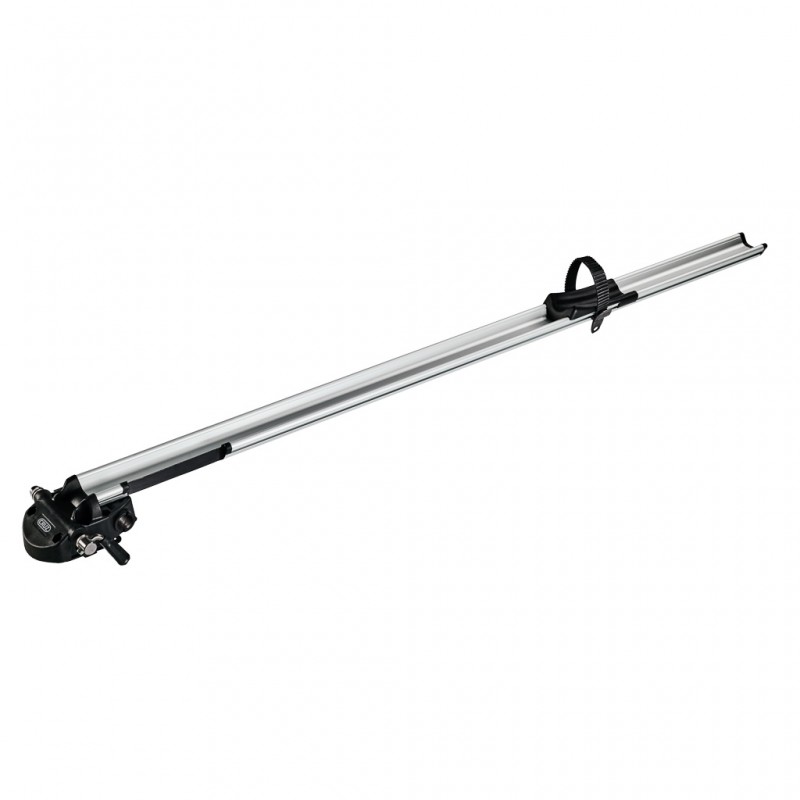

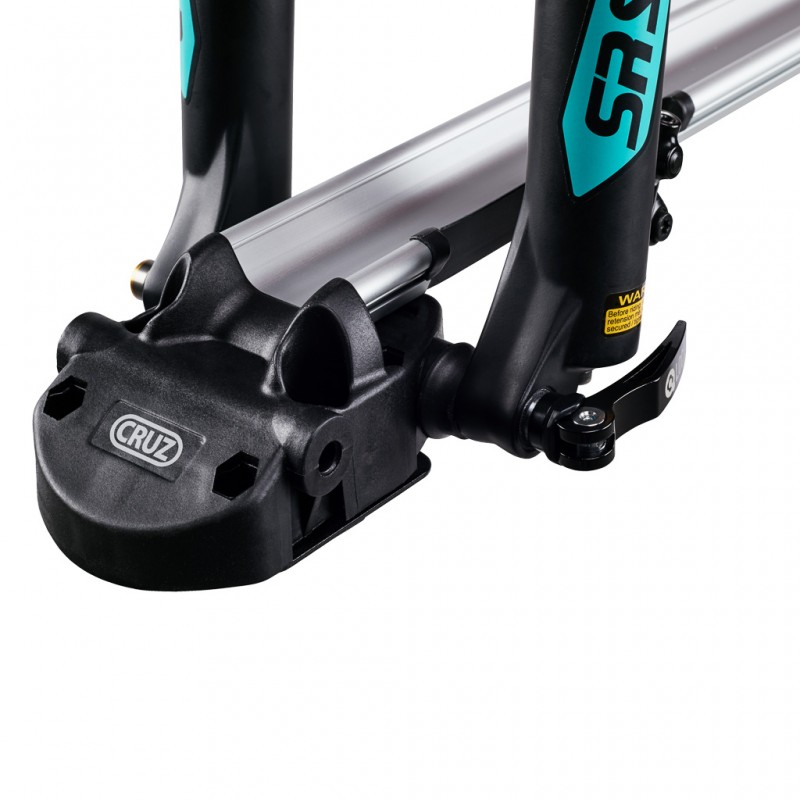

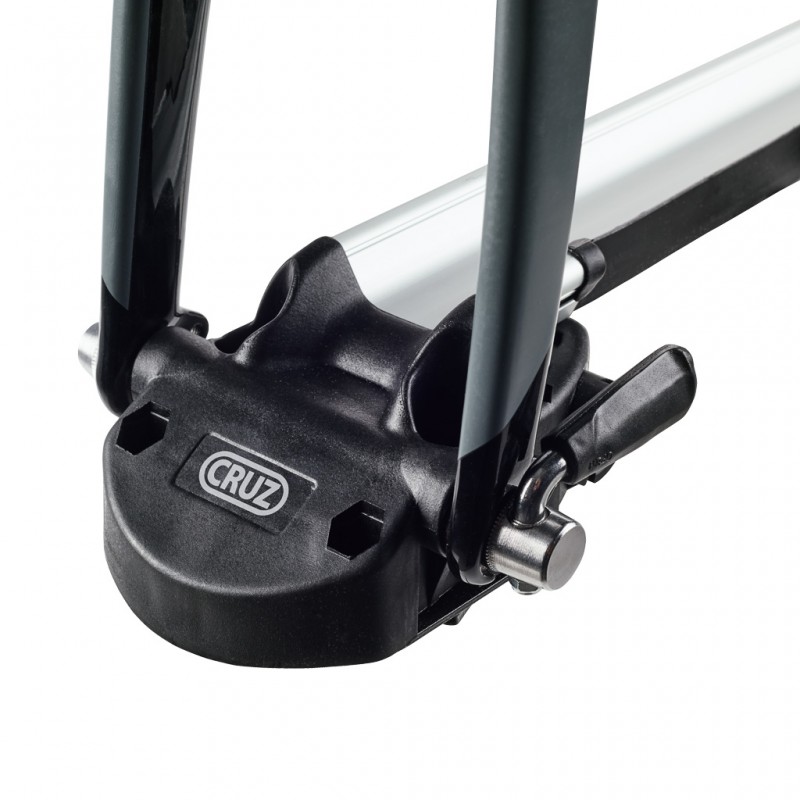

The CRUZ Criterium fork bike carrier designed for the safe transport of most types of bikes. Its design makes it compatible with both normal and thru axle bikes, as well as being compatible with most disc brakes.

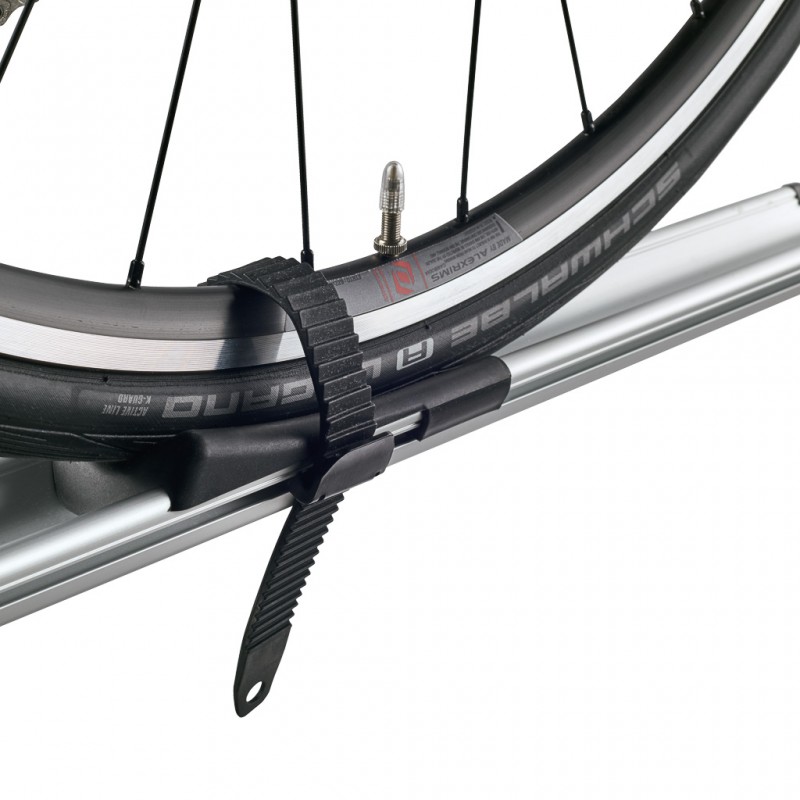

Quick release straps for fixing the rear wheel.

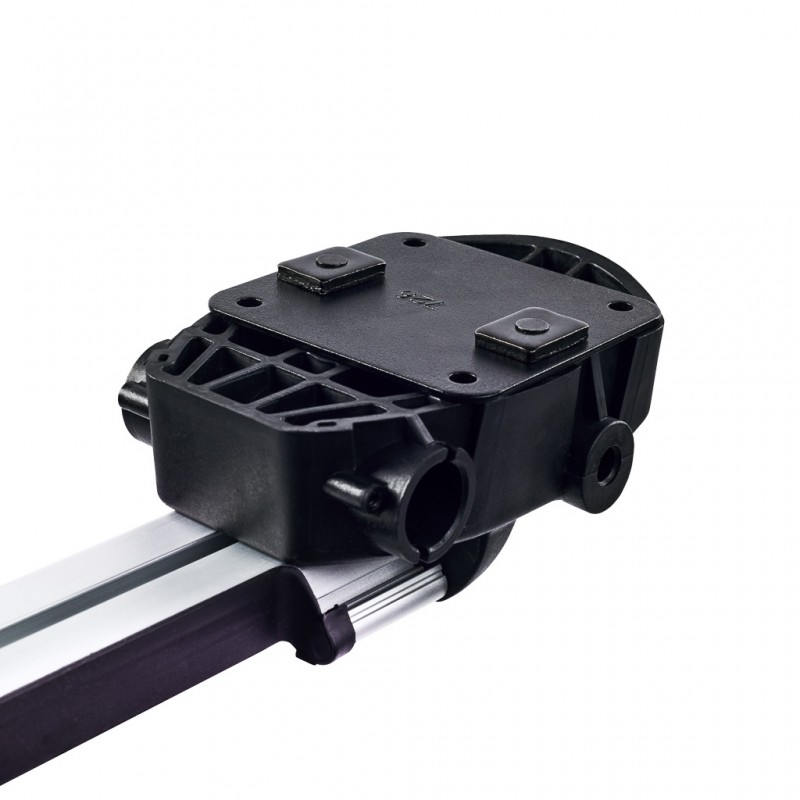

Easy fitting to roof racks with standard size t-tracks, or to standard 30×20 square bar roof racks.
Installation Video:
Data Sheet:
| Reference | 940-012 |
| Load capacity for bikes | 1 |
| Dimensions (LxWxH) | 126.5 x 10 x 6.5 cm |
| Weight | 1.6 Kg |
| Load capacity | 15 Kg |
| Max. Load per bike | 15 Kg |
| Suitable for bike frames | All |
| Suitable for wheels | 22′-29′ |
| Suitable for tyres up to | 2.25′ |
| Compatible with normal axles | 9 mm |
| Compatible with thru axles | 15 mm 20 mm |
| Maximum distance between bike axles | 108 cm |
| Compatible with: all Cruz bars. | Yes |

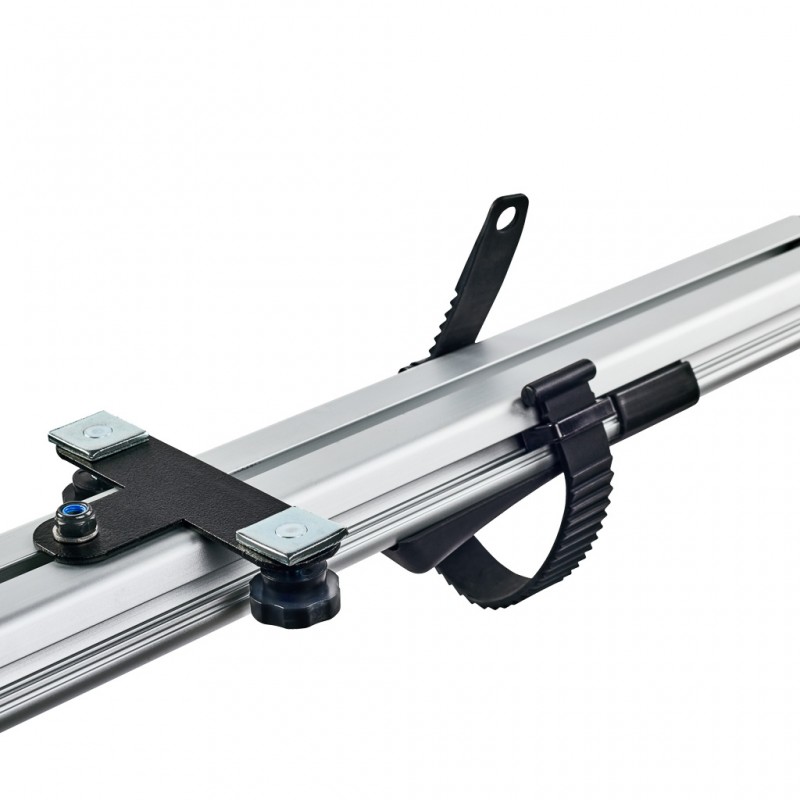

| Mounting adapter for alu-bars on T-tracks | Included |

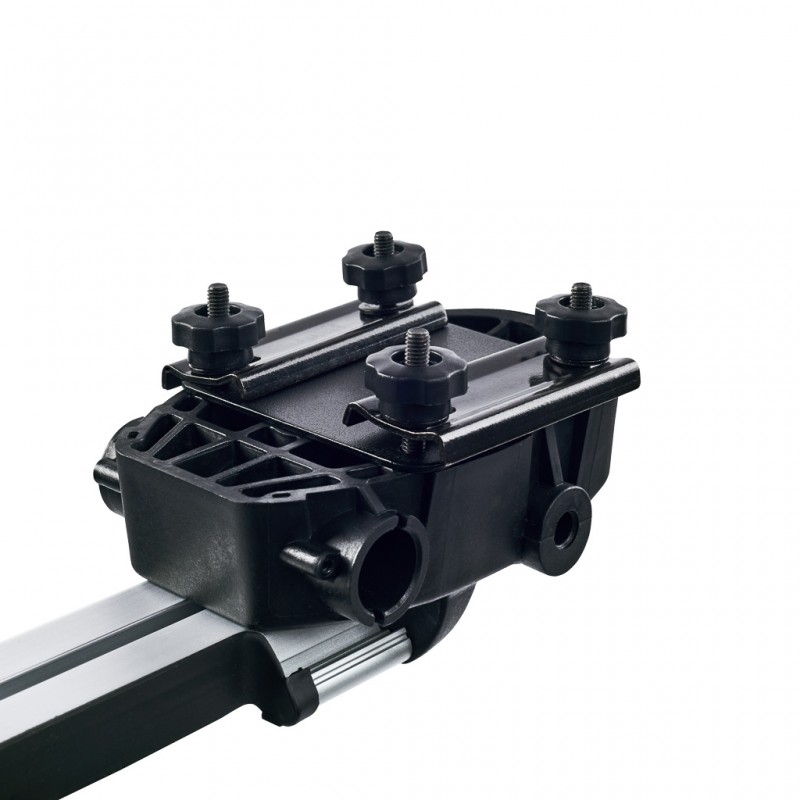

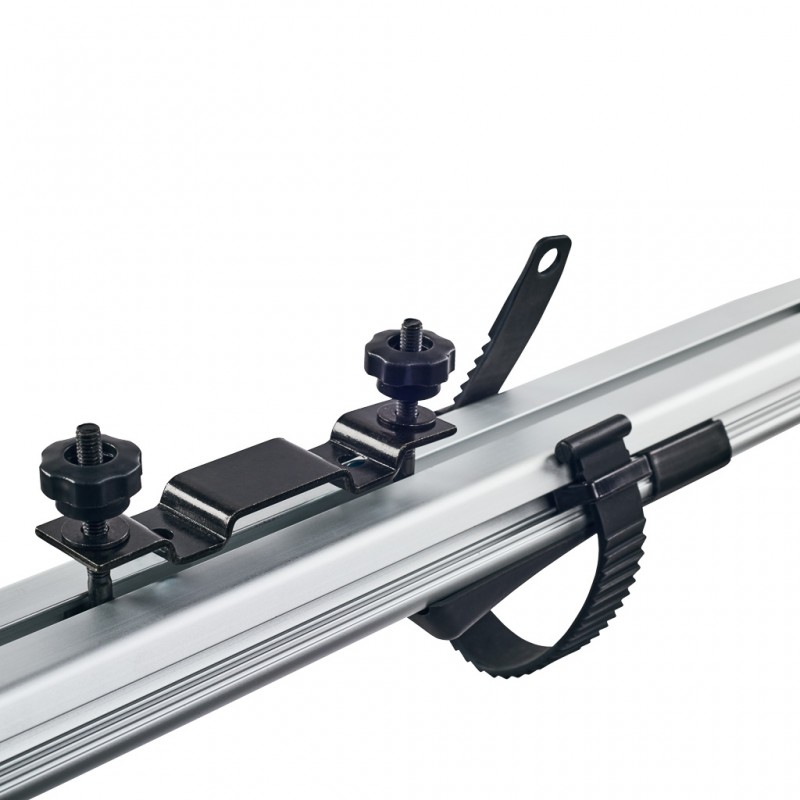

| Mounting adapters for steel bars (max. 50×48) | Included |
| Anti-theft (bike carrier) | No |
| Anti-theft (bikes) | No |
| TÜV GS | Yes |
